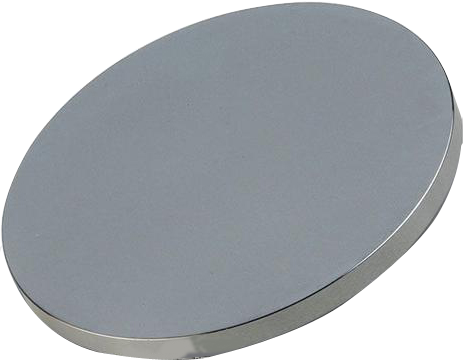

Silicon
First Generation
Description
- Growing: CZ, MCZ
- Size: 1 inch to 6 inch, 8 inch and 12 inch and other customized
- Surface: SSP, DSP and Etched
- Orientation: <100>, <111>, <110> and others
- Thickness: 25 um, 50um, 100um, 200 um and the standard thickness: 280 um to 1 mm and > 1mm.
- Type: N type, P type and intrinsic
- Resistivity: Heavy doping: <0.0015 Ω.cm, Light doping: 1-100 Ω.cm, intrinsic: >1000 to > 20000 Ω.cm
 |
 |
 |
 |
||||
| Single Crystal Silicon Rod | 1-12 Inch Single Crystal Silicon Wafer | Ultra-Thin Silicon Wafer | Ultra-Thick Silicon Wafer | ||||
|
Growth Method
|
Zone Melting (FZ), Neutron Transmutation Doping Zone Melting (NTDFZ), etc.
|
||||
|
Diameter
|
2 inches, 3 inches
|
4 inches, 5 inches
|
6 inches
|
8 inches
|
12 inches
|
|
Orientation
|
<100><111><110>
|
<100><111><110> Special Orientation
|
<100><111><110>
|
<100><111><110>
|
<100>
|
|
Tichkness（um）
|
25um,50,280,400,500,1000,2000,
as required |
20um,100um, 200,450,500,525,1000,2000,3000,5000,
as required |
625,650,675,1000,1500,
as required |
650,700,725,1200,1500,
as required |
700,775,as required
|
|
Resistivity（Ω.cm）
|
0.001,>1,>100,>1000,>10000,>20000
as required |
0.001,>1,>100,>1000,>10000,>20000
as required |
0.001,>1,>100,>1000,>10000,>20000
as required |
0.001 ,>1,>100,>1000,>10000
as required |
>1,>100,>1000,>10000
as required |
|
TTV（um）
|
<10,<5,<3
|
<10,<5,<3
|
<10,<5,<3
|
<10,<5,<3,＜1
|
<10,<5，<3,＜1
|
|
Bow（um）
|
<20
|
<20
|
<30
|
<30
|
<40
|
|
Warp（um）
|
<30
|
<30
|
<40
|
<40
|
<50
|
|
Roughness（n m）
|
<0.2，0.5
|
<0.2，0.5
|
<0.2，0.5
|
<0.2，0.5
|
<0.2，0.5
|
|
Particles
|
<20@0.3as required
|
<20@0.3as required
|
<20@0.3as required
|
<20@0.3，as required
|
<20@0.3，as required
|
FZ Zone Float-Zone High-Resistivity Silicon Wafer
- Growth Method: Float-Zone (FZ), Neutron-Transmutation-Doped Float-Zone (NTDFZ), etc.
- Dimensions: 1", 2", 3", 4", 5", 6", 8", 12", and special non-standard diameters and shaped silicon wafers.
- Surface: Single-side polished, double-side polished, ground, etc.
- Orientation: <100>, <111>, <110> orientation, and special orientations with tilted angles.
- Thickness: Ultra-thin 25um, 50um, 100um, 200um, etc. Common thickness: 280um-1mm. Ultra-thick: 1mm, 2mm, 5mm, etc.
- Conduction Type: Non-doped semi-insulating.
- Resistivity: >1Ω·cm, >1000Ω·cm, >3000Ω·cm, >5000Ω·cm, >10000Ω·cm, >20000Ω·cm.
- Applications: Infrared optics, terahertz field; rectifiers, field-effect transistors, power integrated circuits, RF, high-voltage diodes, sensors, etc.
- Processing: Can be processed with oxidation, nitridation, and metal film deposition (silver Ag, gold Au, platinum Pt, copper Cu, titanium Ti, nickel Ni).
- Supply Capacity: Large inventory in stock, complete varieties, and same-day shipping!
- Processing Capacity: Various specifications can be processed, tailored to customer needs! Short lead time!
|
Diameter
|
2 inches, 3 inches
|
4 inches, 5 inches
|
6 inches
|
8 inches
|
12 inches
|
|
Orientation
|
<100><111>
|
<100><111><110> Special Orientation
|
<100><111>
|
<100><111>
|
<100>
|
|
Thickness (um)
|
>50, 280, 400, 500, 1000, 2000, as required
|
200, 450, 500, 525, 1000, 2000, 3000, 5000,
as required |
625, 650, 675, 1000, 1500, as required
|
650, 700, 725, 1200, 1500,
as required |
700, 775, as required
|
|
Resistivity (Ω.cm)
|
<1, >1, >100, >1000, >10000, >20000
as required |
<1, >1, >100, >1000, >10000, >20000
as required |
<1, >1, >100, >1000, >10000, >20000
as required |
>1, >100, >1000, >10000
as required |
>1, >100, >1000, >10000
as required |
|
TTV (um)
|
<10, <5, <3
|
<10, <5, <3
|
<10, <5, <3
|
<10, <5, <3
|
<10, <5
|
|
Bow (um)
|
<20
|
<20
|
<30
|
<40
|
<50
|
|
Warp (um)
|
<20
|
<20
|
<30
|
<40
|
<50
|
|
Roughness (nm)
|
<0.2
|
<0.2
|
<0.2
|
<0.2
|
<0.2
|
|
Particles
|
<10@0.3
|
<10@0.3
|
<10@0.3
|
<20@0.2
|
<20@0.3
|
